We specialize in the research and development, production, and sales of various standard, non-standard, and fasteners such as high-quality and high-precision bolts, screws, nuts, washers, etc.
Fasteners have diverse materials and complete specifications, supporting non-standard customization.
Consulting service hotline:13306482520
Email:13306482520@163.com

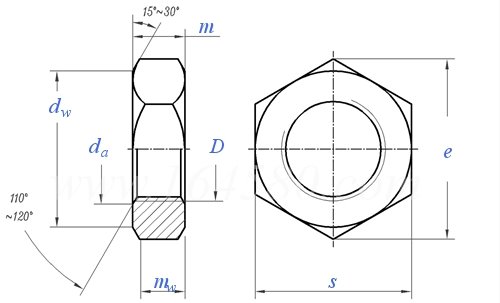

| Thread specificationD | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | |
| P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
| da | Maximum value | 1.84 | 2.3 | 2.9 | 3.45 | 4 | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 |
| minimum value | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
| dw | minimum value | 2.4 | 3.1 | 4.1 | 4.6 | 5.1 | 5.9 | 6.9 | 8.9 | 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 24.9 | 27.7 |
| e | minimum value | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 29.56 | 32.95 |
| m | Maximum value | 1 | 1.2 | 1.6 | 1.8 | 2 | 2.2 | 2.7 | 3.2 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| minimum value | 0.75 | 0.95 | 1.35 | 1.55 | 1.75 | 1.95 | 2.45 | 2.9 | 3.7 | 4.7 | 5.7 | 6.42 | 7.42 | 8.42 | 9.1 | |
| mw | minimum value | 0.6 | 0.8 | 1.1 | 1.2 | 1.4 | 1.6 | 2 | 2.3 | 3 | 3.8 | 4.6 | 5.1 | 5.9 | 6.7 | 7.3 |
| s | Maximum value=nominal | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 |
| minimum value | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | |
| Thread specificationD | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | |
| P | Pitch | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 |
| da | Maximum value | 23.7 | 25.9 | 29.1 | 32.4 | 35.6 | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | 56.2 | 60.5 | 64.8 | 69.1 |
| minimum value | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | |
| dw | minimum value | 31.4 | 33.2 | 38 | 42.8 | 46.6 | 51.1 | 55.9 | 60 | 64.7 | 69.5 | 74.2 | 78.7 | 83.4 | 88.2 |
| e | minimum value | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 |
| m | Maximum value | 11 | 12 | 13.5 | 15 | 16.5 | 18 | 19.5 | 21 | 22.5 | 24 | 26 | 28 | 30 | 32 |
| minimum value | 9.9 | 10.9 | 12.4 | 13.9 | 15.4 | 16.9 | 18.2 | 19.7 | 21.2 | 22.7 | 24.7 | 26.7 | 28.7 | 30.4 | |
| mw | minimum value | 7.9 | 8.7 | 9.9 | 11.1 | 12.3 | 13.5 | 14.6 | 15.8 | 17 | 18.2 | 19.8 | 21.4 | 23 | 24.3 |
| s | Maximum value=nominal | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 |
| minimum value | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
