We specialize in the research and development, production, and sales of various standard, non-standard, and fasteners such as high-quality and high-precision bolts, screws, nuts, washers, etc.
Fasteners have diverse materials and complete specifications, supporting non-standard customization.
Consulting service hotline:13306482520
Email:13306482520@163.com

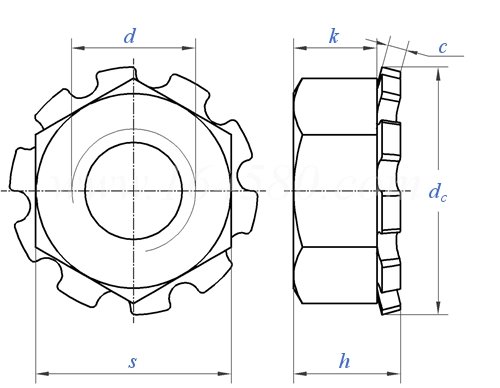

| Thread size d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| s | Minimum value | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 18.7 |
| Maximum value | 5.5 | 7 | 8 | 10 | 13 | 17 | 19 | |
| k | Maximum value | 2.4 | 3.2 | 4 | 5 | 6.5 | 8 | 10 |
| dc | Minimum value | 7 | 7.9 | 9.1 | 10.85 | 14.7 | 18.6 | 21.6 |
| Maximum value | 7.2 | 8.1 | 9.3 | 11.15 | 15.1 | 19 | 22 | |
| c | Reference value | 0.45 | 0.45 | 0.6 | 0.6 | 0.8 | 0.9 | 1 |
| Thousand piece weight kg | 0.35 | 0.75 | 1.16 | 2.37 | 4.9 | 11.55 | 16.4 | |
| ①,Non standard product data may vary depending on the source. Please communicate with the actual manufacturer for specific dimensions | ||||||||
